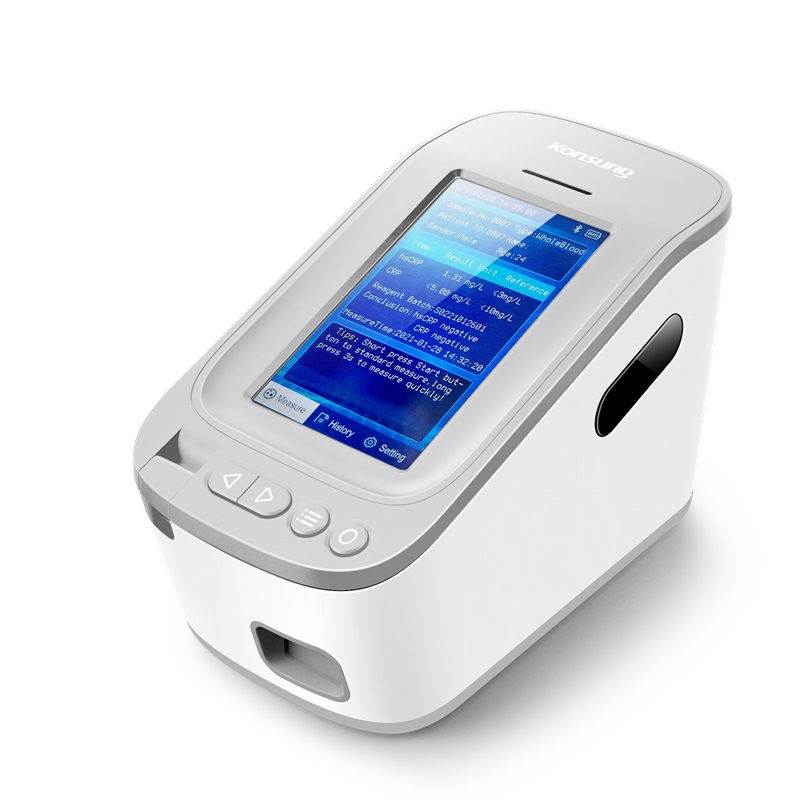

Immunofluorescence Analyzer (TRFIA)

For quantitative detection of

♦Diabetes Mellitus: HbA1c

♦Others: 25-OH-VD

……

♦Smart TFT color screen with touch function

♦Low cost of disposable consumables and testing

♦Easy and simple operation : 4 steps only, 3-15 test time

♦Hand-held size design, easy to carry, weight 700g

♦Rechargeable built-in lithium battery

♦Support Bluetooth transmission (optional), APP, external thermal printer

Product Detail

Product Name	Immunofluorescence Analyzer (TRFIA)
Brand Name	Konsung
Type	Blood analysis system
Model Number	Compass 3000
Instrument Classification	Class II
Warranty	3 Years
Input	100-240V,50/60Hz ,30VA;
Output	DC 5V,2A
Inner Power	DC 3.7V
Work Environmental Temperature	0 ℃ ~40 ℃
Inspection Method	Photometric detection
Sample Dosage	40ul
Inspection Time	≤3min
Type of Sample	Capillary vessel or vein
After-sale Service	Online technical support

HbA1c
Measurement: 4 ～ 14%
Sample: whole blood
Sample Volume: 10 μL
Reaction Time: 10 mins

25-OH-VD
Measurement: 5 ～120 ng/mL
Sample: serum, plasma
Sample Volume: 20 μL
Reaction Time: 15 mins

14 tests on 1 analyzer

4.3” touch screen

Insert the code chip for calibration.

Draw sufficient amount of fingertip blood and mix with buffer.

Dispense the mixed blood sample to the test card and starting testing.

Insert the test card and check test results.

Packaging Details	Packing in carton, one piece of device including full set of consumables for 100 persons/immunofluorescence analyzer (TRFIA)
Port	Shanghai port
Selling Units	Single item
Single Package Size	19X10X10 cm
Single Gross Weight	0.750 kg
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
