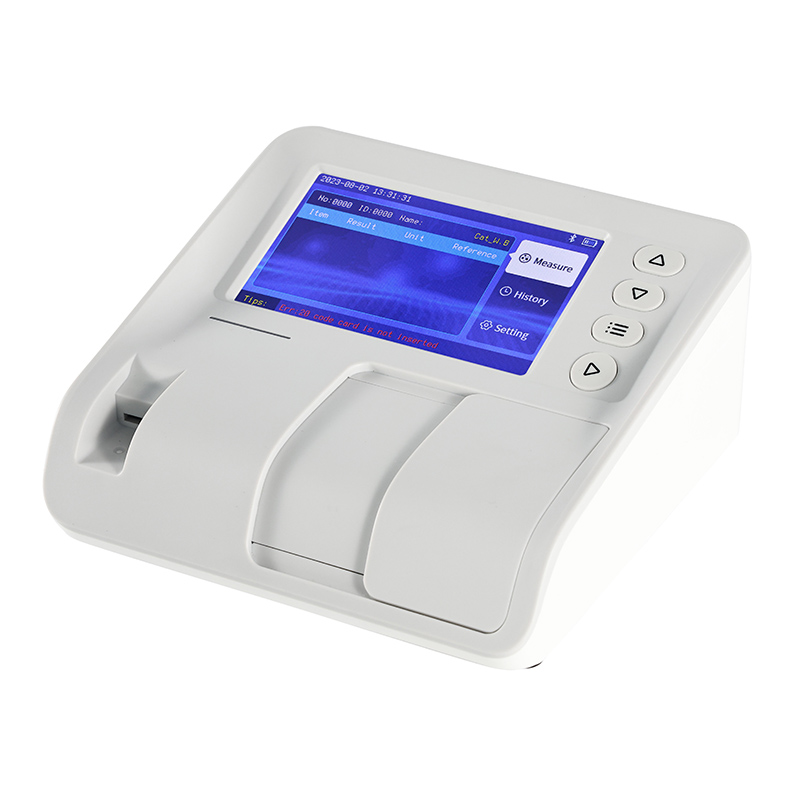

Dry Biochemical Analyzer
Short Description:
Introduction:
The dry biochemical analyzer is a portable dry biochemical quantitative analysis instrument. The analyzer uses the principle of reflection spectrophotometry to quantitative detect the clinical chemical components in the whole blood, serum and plasma of human blood samples by testing the matched test card.
Working principle:
Illuminate the color area of test card with a specific wavelength LED light source, measure the absorbance of the test card, capture the reflected signal strength with the photosensitive diode, and detect the content of the analyte according to the obtained AD value.
Dry Biochemical Analyzer

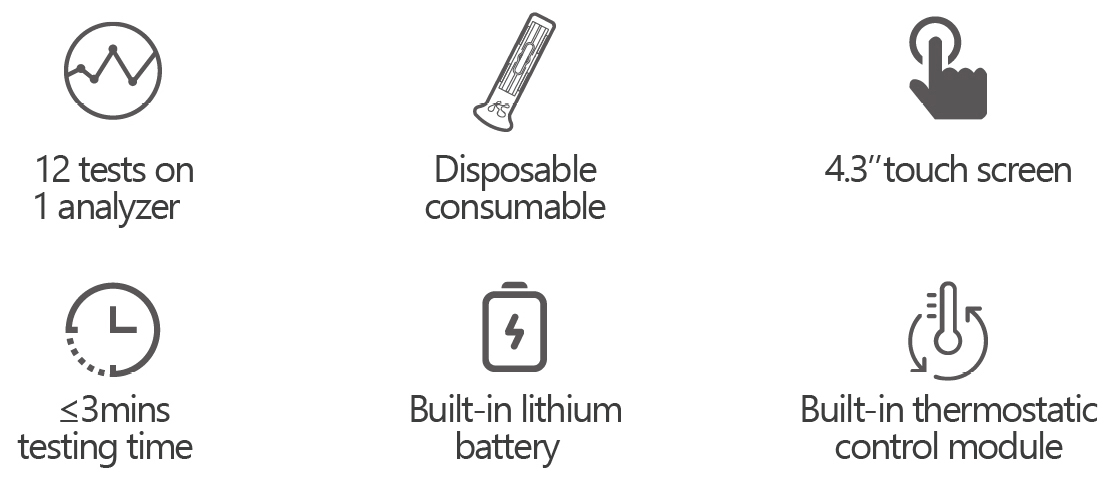

◆ Data transmission: it can upload data by USB, blue teeth, wifi and GPRS…
◆ Intelligentization: The machine can offer corresponding treatment advice basis on test result.
◆ Test item:
Lipid + Glucose (TC, TG, HDL-C, GLU);
Screening of Blood Donors (Hb, ALT);
Screening for Metabolic Disease (TC, UA, GLU);
Liver Function (ALB, ALT, AST);
Kidney Function (Urea, Cre, UA).
◆ Test method: Reflection spectrophotometry
◆ Sample dosage ≤ 45μL
◆ Inspection time ≤ 3min；
◆ Type of sample: peripheral blood or venous blood
◆ Display: it can display test result and historical record query
◆ Power: 5V/3A power adapter, built-in lithium battery
◆ Heating module: the equipment will design temperature in the condition of cold environment.
| Data transmission | USB, blue teeth, Wifi, GPRS |
| Test Item | TC, TG, HDL, LDL, Glu |
| Test method | Dry chemistry |
| Sample dosage | ≤ 60μl |
| Inspection Time | ≤ 3min |
| Type of sample | peripheral blood or venous blood |
| Power | 5V/3A power adapter, built-in lithium battery |

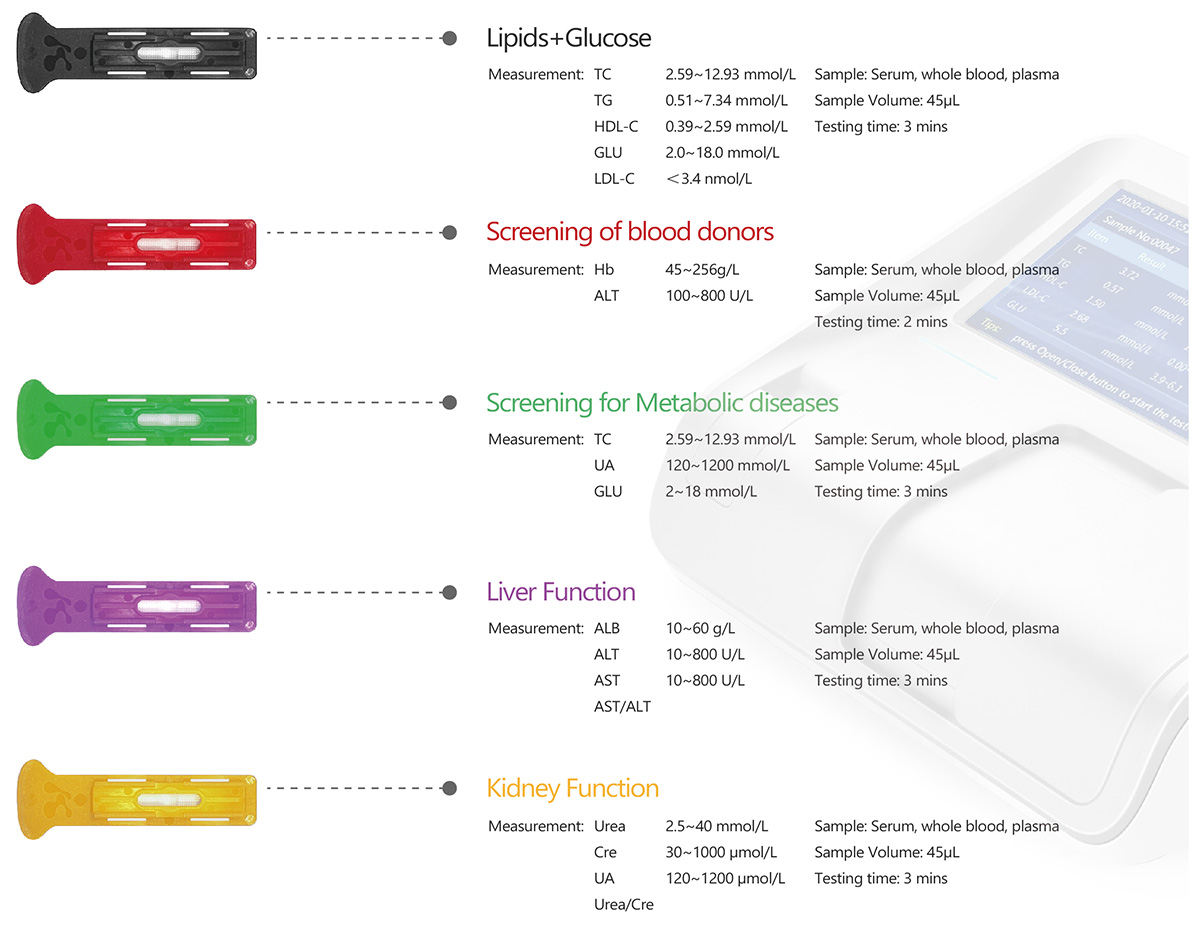

| Measurement | Lipids+Glucose TC: 2.59~12.93 mmol/L TG: 0.51~7.34 mmol/L HDL-C: 0.39~2.59 mmol/L GLU: 2.0-18.0 mmol/L |
| Kidney Function Urea: 2.5~40 mmol/L Cre: 30~1000 μmol/L UA: 120~1200 μmol/L |
|
| Liver Function ALB: 10~60 g/L ALT: 10~800 U/L AST: 10~800 U/L |
|
| Screening for Metabolic diseases TC: 2.59~12.93 mmol/L UA: 120~1200 mmol/L GLU: 2~18 mmol/L |
|
| Screening of blood donors Hb: 45~256g/L ALT: 100~800 U/L |
|
| Repeatability | CV≤5% |
| Accuracy | within ±10% |

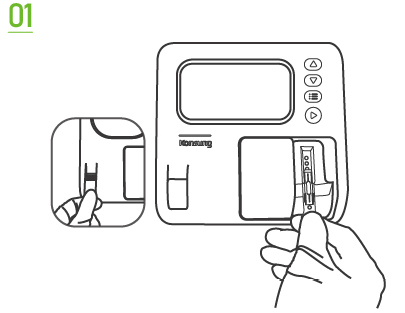

1. Insert the test card into the detection slot.

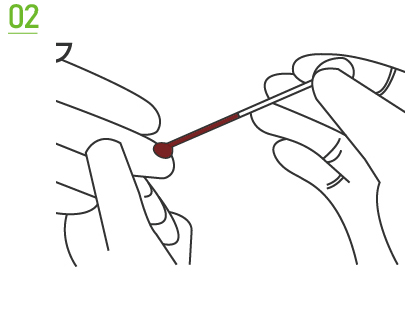

2. Use a pipette to draw 45μL blood sample.

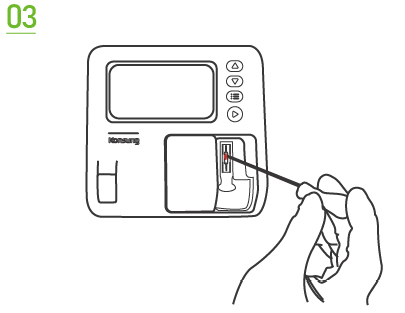

3. Add the collected blood sample to the sample hole of test card and start testing.

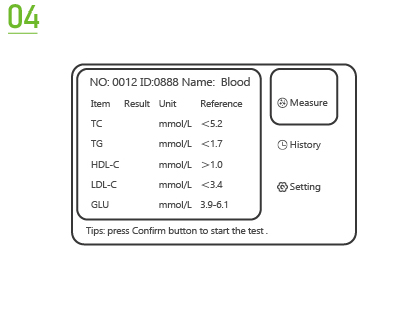

4. Check test results after 3 mins.
Clinics, family doctors:
For disease screening and diagnosis of patients' conditions.
Recommended test cards:
Lipids+Glucose, liver function, kidney function
Chronic disease management:
Pharmacies, chronic disease management, and health management institutions provide long-term monitoring for patients with chronic disease.
Recommended test cards:
Lipids+Glucose, screening for metabolic diseases
Bedside test:
In order to get patient testing data quickly and develop follow-up treatment plan to reduce the sudden death rate for all levels of hospitals emergency and bedside testing.
Recommended test cards:
Lipids+Glucose, liver function, kidney function
Initial screening of blood donors:
Applied in blood stations or blood donation vehicles for initial screening of blood donors.
Recommended test cards:
Screening of blood donors
